Economy Premade Cables -- Duplex Single Mode

Look, everyone knows lasers are cool.  You can blow holes in university statues or destroy homes with popcorn.  If you fancy yourself a 'real genius' you can even use them to transport data!  The best way to contain those beams into something really useful is to shoot them down a TechLogix Networx Fiber Optic patch cable.

The 9/125 micron OS2 single mode fiber optic cable is suitable for higher bandwidth applications, such as in data centers, telecom rooms, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant and cable is optically tested for insertion loss to ensure high quality.

Select a stock length or build your own custom configuration.

• Technical Features
• Resources
• Accessories
• Installation
• FAQ
• SKUs

• • Duplex Fiber Count

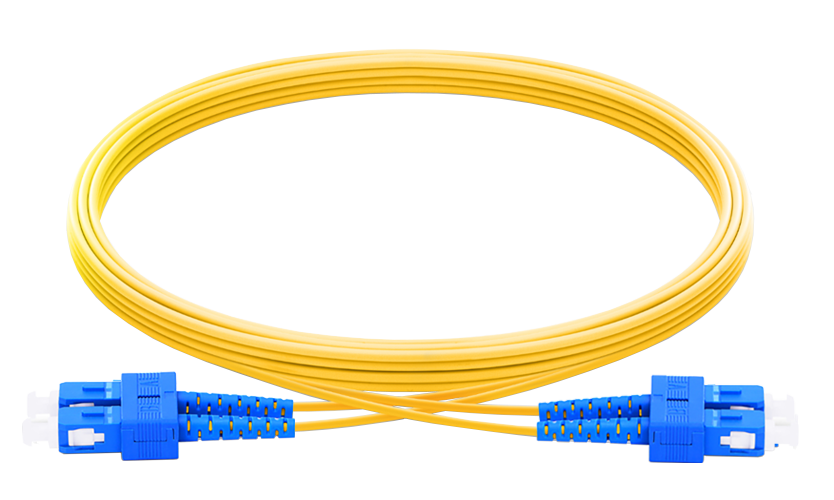

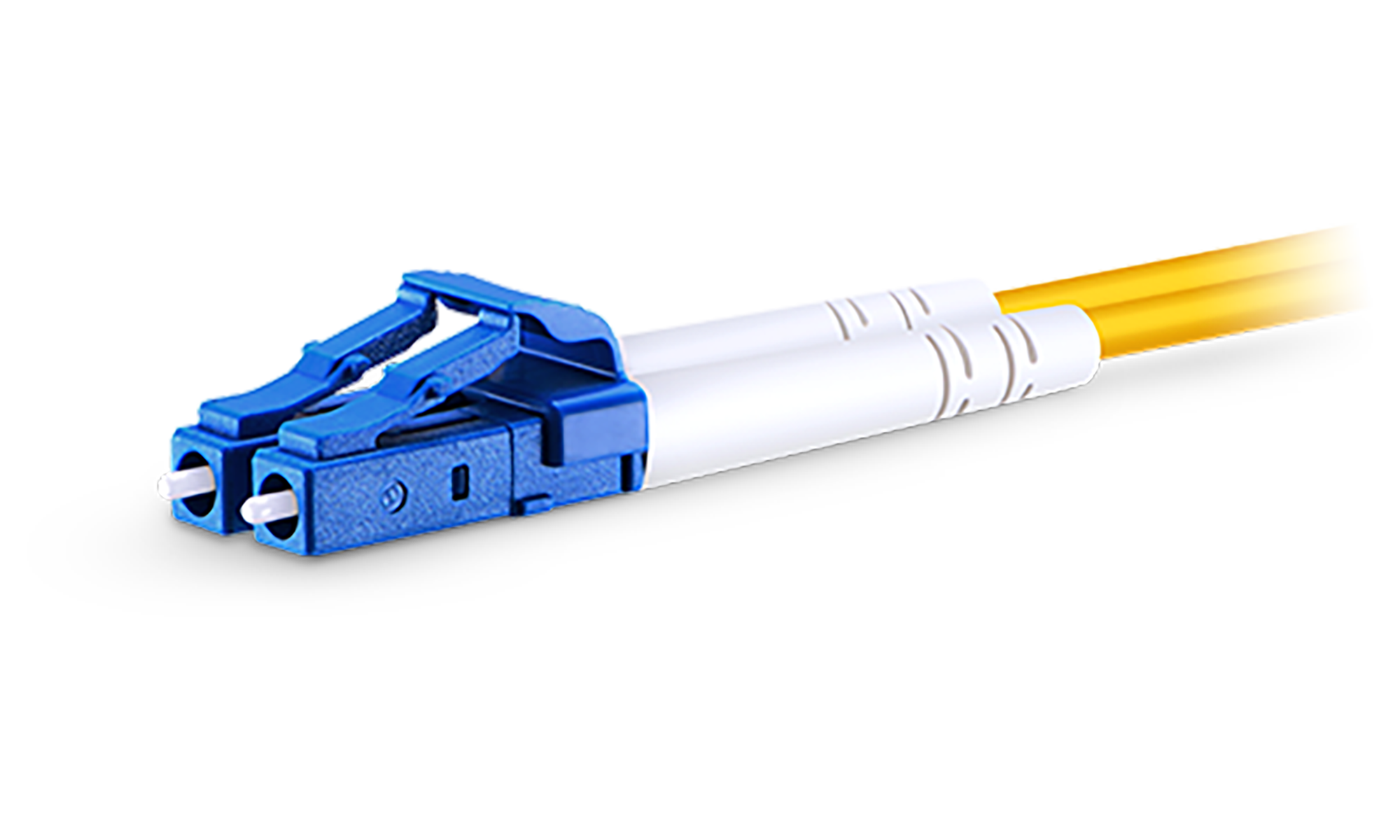

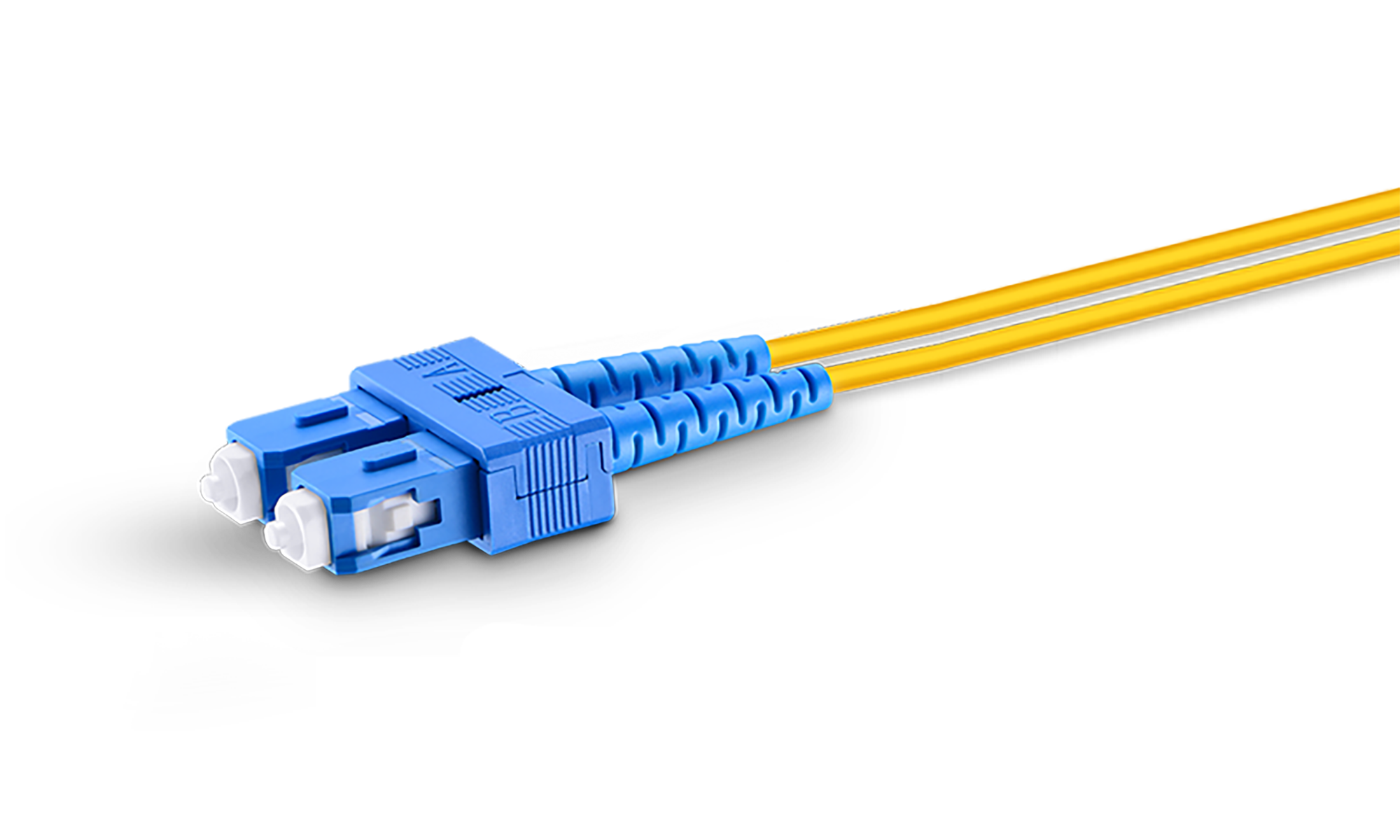

  • Available in 3 configurations - LC/LC, SC/SC, and LC/SC
  • UPC to UPC Polish Type
  • Quality zirconia ceramic ferrule ensures optimum IL and RL, giving you excellent performance.
  • Industry standard flammability rating OFNR (Riser) jacket and duplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

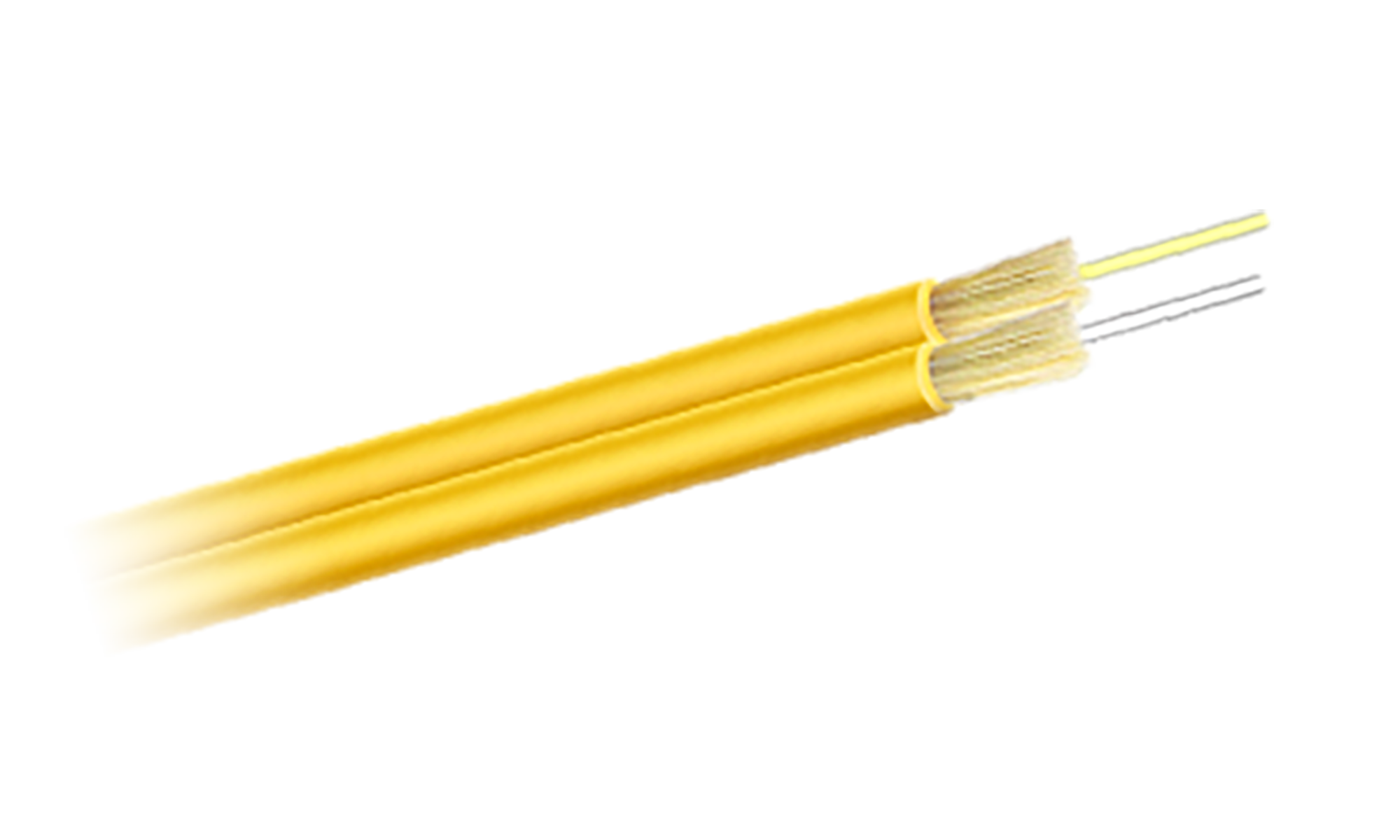

  • 9/125µm fiber core and 2.0mm cable diameter provide maximum protection.
  • Comprehensive performance testing makes sure the cables work more securely and data transmission more reliable and stable in your network.

• Specification Sheet
  Design and Installation Guide
  Manual
  Product Video
  Design Help
  Installation Help

• {{ shop.money_format }}
• 1. Plug the cable into the devices you want to connect.
  2. Bask in the glory of your brilliance.

• What modules can these cables be used with?

  LC cables are compatible with SFP, SFP+ (BIDI SFP+), and XFP. SC cables are compatible with BIDI SFP, GBIC, X2 and XENPAK



  What's the fire rating for this cable?

  Its fire rating is OFNR, which means a fire-resistance characteristic that passed to UL-1666 'standard test for flame propagation height of electrical'.



• TechLogix Part#	TechLogix SKU#	Description
  S2D-ECO-LCLC-01	1004-0050	Standard fiber patch cord -- 1m duplex single mode OS2 2.0mm fiber with LC to LC connectors
  S2D-ECO-LCLC-02	1004-0053	Standard fiber patch cord -- 2m duplex single mode OS2 2.0mm fiber with LC to LC connectors
  S2D-ECO-LCLC-03	1004-0056	Standard fiber patch cord -- 3m duplex single mode OS2 2.0mm fiber with LC to LC connectors
  S2D-ECO-LCLC-05	1004-0059	Standard fiber patch cord -- 5m duplex single mode OS2 2.0mm fiber with LC to LC connectors
  S2D-ECO-LCLC-07	1004-0062	Standard fiber patch cord -- 7m duplex single mode OS22.0mm fiber with LC to LC connectors
  S2D-ECO-LCLC-10	1004-0065	Standard fiber patch cord -- 10m duplex single mode OS2 2.0mm fiber with LC to LC connectors
  S2D-ECO-LCSC-01	1004-0051	Standard fiber patch cord -- 1m duplex single mode OS2 2.0mm fiber with LC to SC connectors
  S2D-ECO-LCSC-02	1004-0054	Standard fiber patch cord -- 2m duplex single mode OS2 2.0mm fiber with LC to SC connectors
  S2D-ECO-LCSC-03	1004-0057	Standard fiber patch cord -- 3m duplex single mode OS2 2.0mm fiber with LC to SC connectors
  S2D-ECO-LCSC-05	1004-0060	Standard fiber patch cord -- 5m duplex single mode OS2 2.0mm fiber with LC to SC connectors
  S2D-ECO-LCSC-07	1004-0063	Standard fiber patch cord -- 7m duplex single mode OS2 2.0mm fiber with LC to SC connectors
  S2D-ECO-LCSC-10	1004-0066	Standard fiber patch cord -- 10m duplex single mode OS2 2.0mm fiber with LC to SC connectors
  S2D-ECO-SCSC-01	1004-0052	Standard fiber patch cord -- 1m duplex single mode OS2 2.0mm fiber with SC to SC connectors
  S2D-ECO-SCSC-02	1004-0055	Standard fiber patch cord -- 2m duplex single mode OS2 2.0mm fiber with SC to SC connectors
  S2D-ECO-SCSC-03	1004-0058	Standard fiber patch cord -- 3m duplex single mode OS2 2.0mm fiber with SC to SC connectors
  S2D-ECO-SCSC-05	1004-0061	Standard fiber patch cord -- 5m duplex single mode OS2 2.0mm fiber with SC to SC connectors
  S2D-ECO-SCSC-07	1004-0064	Standard fiber patch cord -- 7m duplex single mode OS2 2.0mm fiber with SC to SC connectors
  S2D-ECO-SCSC-10	1004-0067	Standard fiber patch cord -- 10m duplex single mode OS2 2.0mm fiber with SC to SC connectors
